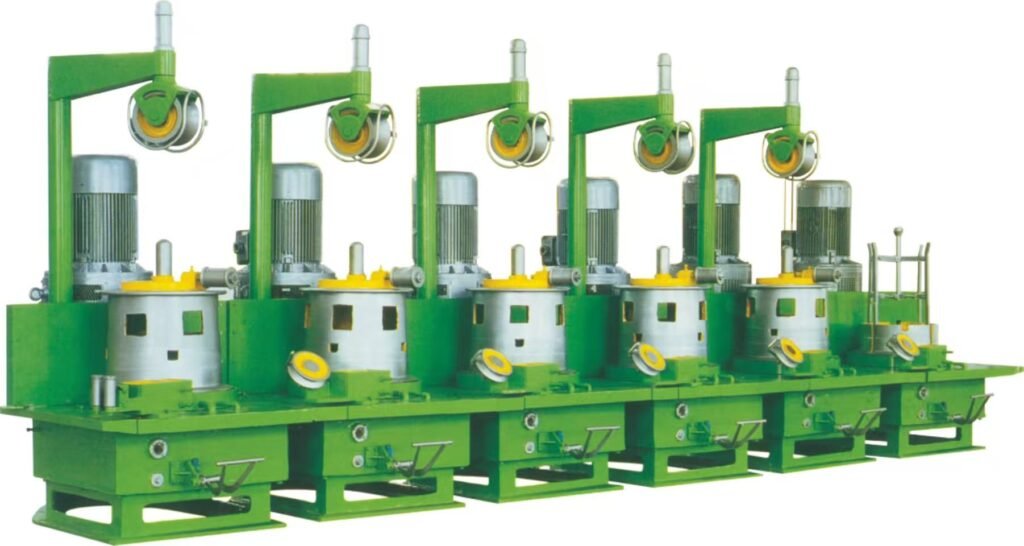

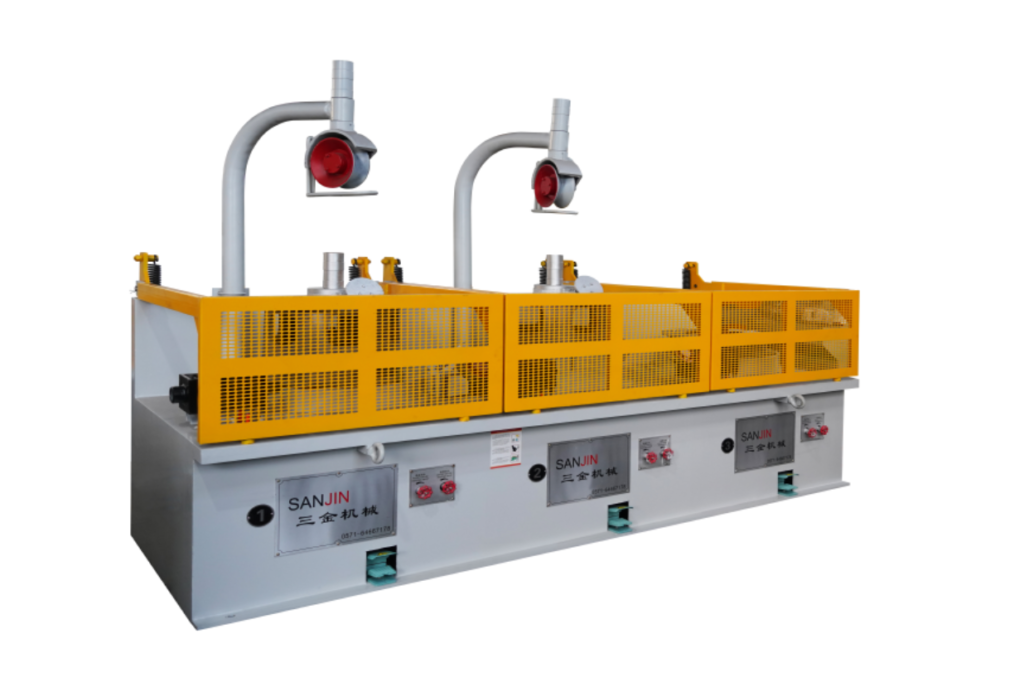

Pulley Type Wire Drawing Machine
Our Pulley Type Wire Drawing Machine provides a cost-effective, versatile, and easy-to-maintain solution for drawing medium and fine wire diameters, widely suitable for low and medium carbon steel materials.
Technical Specifications
| Parameters | Details |
|---|---|
| Inlet Wire Diameter | 2.5mm - 10mm |
| Minimum Outlet Wire Diameter | 0.4mm (customized) |
| Max Drawing Speed | 260 - 380 m/min (Depends on wire inlet and outlet) |
| Main Motor Power | 5.5kW - 30kW (Customizable) |
| Applications | Low Carbon Steel: SAE 1006, 1008, 1010, 1018, Q195, Q215, Q235; Medium/High Carbon Steel: 1045, 1060, 1070, 1080, 1084, 72A, 80#; Stainless Steel: 201, 202, 304, 316, 430; Copper & Alloys: C1100, C2680 (Brass), Bronze |
| Steel plate thickness | 20 mm |
| Motor | China top brand, Siemens or customized |
| VFD | China top brand, Siemens or customized |
| Capstan cooling | Water (customized) |
| Drawing Die Cooling | WATER |
Why Choose This Pulley Type Wire Drawing Machine?
Energy Saving Design
Powered by advanced IE3 high-efficiency motors with a 93.6% rating, our machines minimize energy waste. This directly translates to lower electricity bills, reduced production costs, and a faster return on your investment compared to standard equipment.
Cost-Effective Solution
Designed with a simple and reliable structure, offering excellent value for money, which greatly reduces your initial investment and operating costs.
Easy Operation & Maintenance
User-friendly design ensures quick setup and simple daily maintenance, significantly reducing the demand for skilled labor.
Trade Terms & After-Sales Guarantee
Flexible Trade Terms
We support EXW, FOB, CIF, and CFR. FOB Ningbo/Shanghai or CIF to your destination port are available.
Fast Delivery Time
Standard machines: 30-45 working days. Customized lines: approximately 50-60 working days.
Reliable Warranty
12-month warranty for the machine and main spare parts. 18-months warranty for motor and VFD.
Long-term Technical Support
Lifelong technical consultation, remote troubleshooting, and wear parts supply at factory prices.
On-Site Installation & Commissioning
Secure Export Packaging & Global Shipment
Real photos from our factory showing how our wire drawing machines are carefully packed, loaded, and prepared for global delivery.
Need a Quote for This Pulley Type Wire Drawing Machine?
Submit your specific wire material, inlet/outlet diameter, and production speed requirements. We will provide a tailored solution and detailed quotation within 12 hours.
