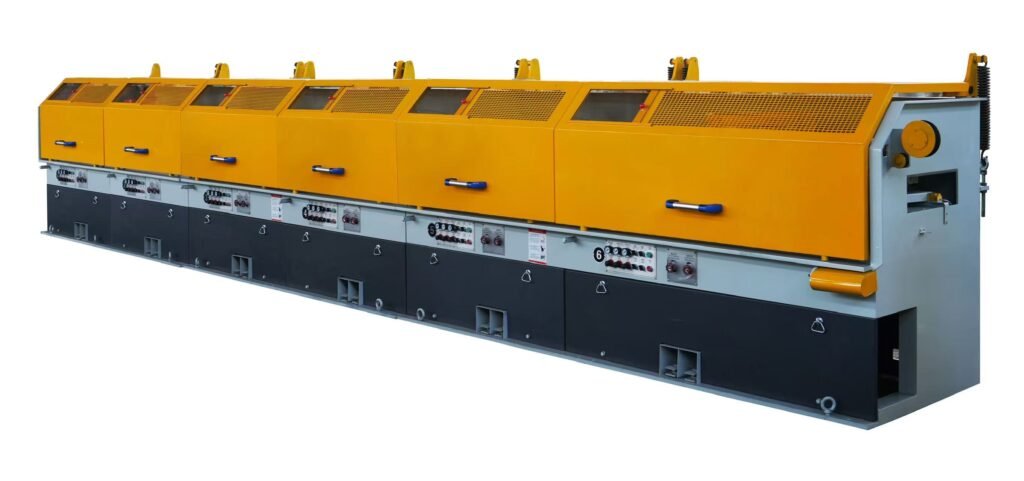

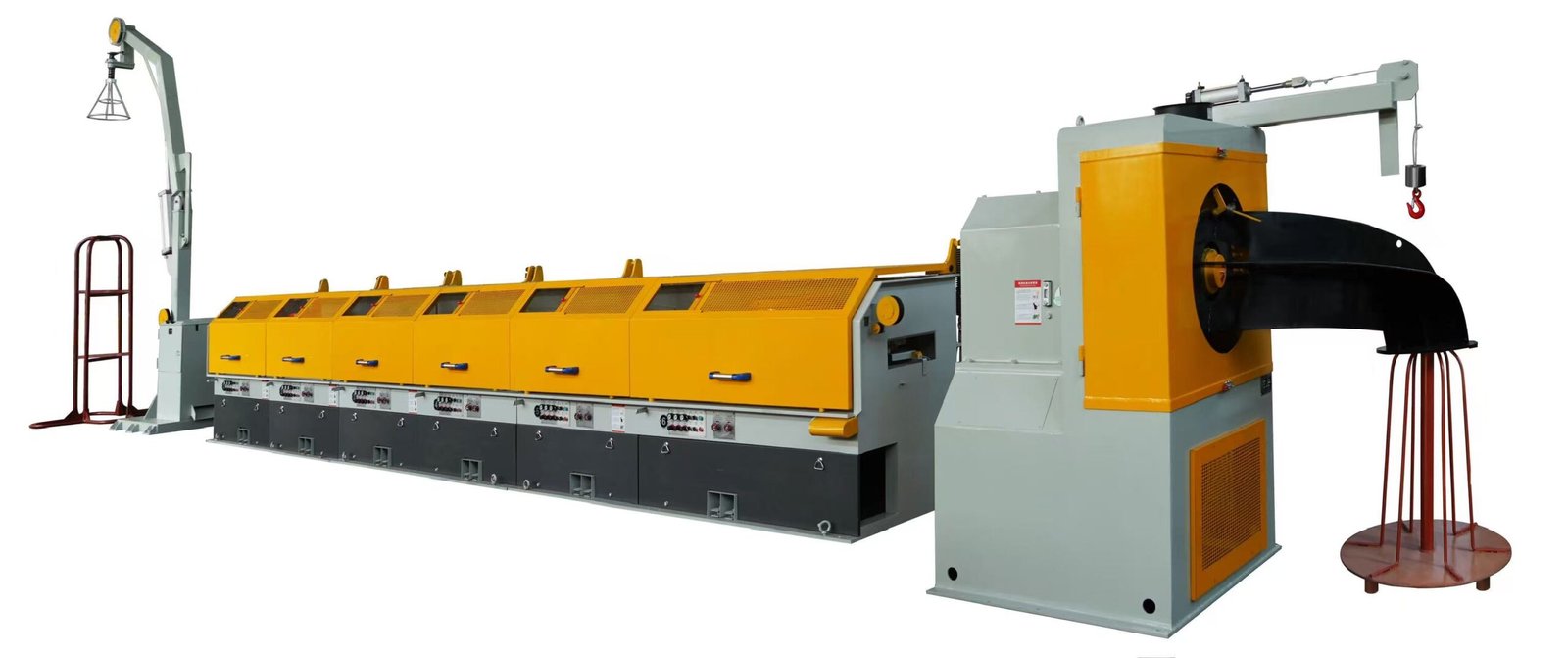

Straight Line Wire Drawing Machine
Our Straight Line Wire Drawing Machine ensures high production speed and stable wire tension. It is specially designed for processing a wide range of materials, including high carbon steel, low carbon steel, stainless steel, copper, and aluminum wires, delivering excellent surface quality for fine to medium diameters.
Technical Specifications
| Parameters | Details |
|---|---|
| Inlet Wire Diameter | 1.2mm - 6.5mm (Most commonly used: 5.5mm, 6.5mm, 8mm) |
| Outlet Wire Diameter | 0.8mm - 5.6mm |
| Max Drawing Speed | 1200 m/min |
| Main Motor Power | 18.5kW - 45kW (Customizable) |
| Applications | Low Carbon Steel: SAE 1006, 1008, 1010, 1018, Q195, Q215, Q235; Medium/High Carbon Steel: 1045, 1060, 1070, 1080, 1084, 72A, 80#; Stainless Steel: 201, 202, 304, 316, 430; Copper & Alloys: C1100, C2680 (Brass), Bronze; Aluminum: 5052, 6061, 6063 |
| Steel plate thickness | 20 mm |
| Motor | China top brand, Siemens or customized |
| VFD | China top brand, Siemens or customized |
| Capstan cooling | Narrow gap water + air |
Why Choose This Straight Line Machine?
Energy Saving Design
Powered by advanced IE3 high-efficiency motors with a 93.6% rating, our machines minimize energy waste. This directly translates to lower electricity bills, reduced production costs, and a faster return on your investment compared to standard equipment.
High Efficiency & Speed
Achieving drawing speeds of 1080 m/min, this machine processes 6.5mm low carbon steel wire down to 2.0mm. Considering actual production conditions like threading and re-spooling, it delivers a real-world production capacity of approximately 10.3 tons per 8-hour shift, ensuring stable and reliable daily output.
Easy Maintenance
Designed with a modular structure for quick on-site maintenance. More importantly, all wire contact parts are coated with advanced Tungsten Carbide (HRC 63), delivering exceptional wear resistance. This significantly extends the lifespan of consumables, drastically lowering spare part replacement frequency and long-term operational costs.
Trade Terms & After-Sales Guarantee
Flexible Trade Terms
We support EXW, FOB, CIF, and CFR. FOB Ningbo/Shanghai or CIF to your destination port are available.
Fast Delivery Time
Standard machines: 30-45 working days. Customized lines: approximately 50-60 working days.
Reliable Warranty
12-month warranty for the machine and main spare parts. 18-months warranty for motor and VFD.
Long-term Technical Support
Lifelong technical consultation, remote troubleshooting, and wear parts supply at factory prices.
On-Site Installation & Commissioning
Secure Export Packaging & Global Shipment
Real photos from our factory showing how our wire drawing machines are carefully packed, loaded, and prepared for global delivery.
Need a Quote for This Straight Line Wire Drawing Machine?
Submit your specific wire material, inlet/outlet diameter, and production speed requirements. We will provide a tailored solution and detailed quotation within 12 hours.
