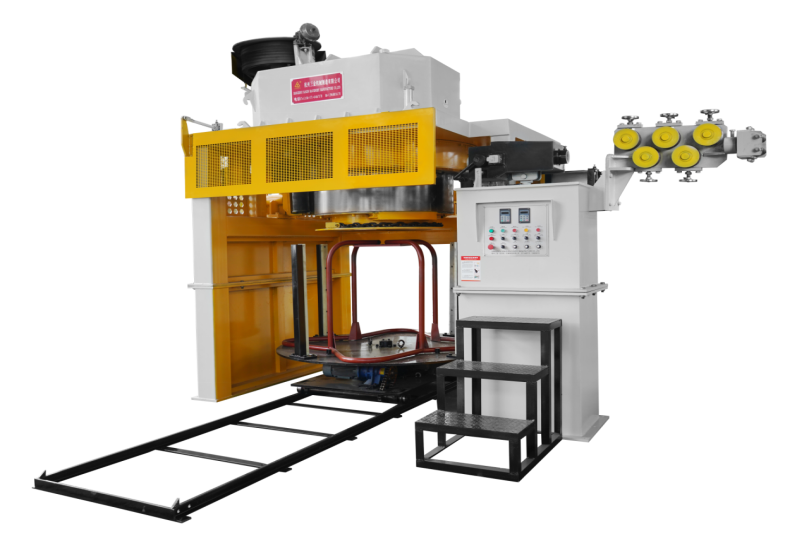

Inverted Vertical Wire Drawing Machine
Product Overview
Our inverted vertical wire drawing machine (Model LDD‑800 as reference sample) is built for thick incoming wire drawing. It integrates drawing and take‑up within vertical layout without wire twisting during processing.
It processes low‑/medium‑/high‑carbon steel, spring steel, alloy steel, die steel and stainless steel wire, and supports large‑coil‑weight production.
**The main reducer is self‑manufactured in our own workshop.**
Standard configuration includes water‑cooled drawing mold box (water-cooled capstan is optional), five‑roller straightener, damped pay‑off reel and traveling take‑up trolley.
Note: Compared with straight‑line wire drawing machines which focus on multi‑pass high‑speed drawing for medium‑fine wire, this inverted vertical unit is optimized for thick wire and large coil‑weight production.
We are original manufacturer, all configurations can be adjusted according to your actual wire requirements.
Core Advantages
1.Vertical Integrated Drawing & Take‑up Trolley Structure
Equipped with motor‑driven traveling take‑up trolley. After drawing completion, trolley moves outward for convenient coil unloading, no complicated threading procedure.
2.Twist‑free Wire Drawing
Vertical processing path avoids wire torsion, maintains good surface quality for spring steel, alloy and high‑carbon steel wire.
3.Damped Pay‑off Reel (3‑ton type as option)
Damping band structure prevents over‑speeding of pay‑off disc caused by inertia, avoids wire tangling, improves operational safety for thick wire drawing.
4.Built‑in Five‑roller Straightening Device
Wire gets straightened before entering drawing die, prevents one‑sided deformation and out‑of‑round finished wire.
5.Automatic Stop Upon Coil Completion
Machine stops automatically once one coil drawing is finished, prevents equipment damage caused by unattended operation.
Key Features & Structure
1.Self‑produced Heavy‑duty Reducer
Main reducer is fully self‑manufactured by our factory. Gear adopts 20CrMnTi steel, carburized‑quenched and gear‑ground. High load‑bearing capacity, low noise for continuous heavy‑load production.
2.Water‑cooled Tungsten Carbide Overlay Welded Capstan
800 mm drawing capstan with inner circulating water cooling. Capstan surface is overlay‑welded with tungsten carbide to HRC 63 hardness for good wear‑resistance.
3.Combined Water‑cooled Die Box & Powder Box
Split‑type powder box and die box. Die box adopts circulating water cooling to extend drawing die service life. Die box can be adjusted horizontally and vertically for correct wire alignment towards capstan.
4.Disc‑brake Braking System
Butterfly disc brake offers stable braking performance, fast response and good heat dissipation.
5.Pneumatic Wire‑pressing Rollers
Air‑cylinder‑driven pressing rollers hold wire tightly for smooth coil unloading. Imported wear‑resistant high‑temperature nylon press‑rollers.
6.Thick‑welded Main Frame
Heavy‑duty welded main frame. All wire‑contact components adopt wear‑resistant treatment to avoid wire scratching. Take LDD-800 Type as reference , we use 20 mm thick steel plate, the total weight can reach 7000kg.
7.PLC & VFD Stepless Speed Regulation
AC variable‑frequency drive realizes stepless speed adjustment, comprehensive motor protection, simple maintenance.
8.Customized Frame & Capstan Solution for Fastener Production
For many fastener manufacturers, we offer special custom configuration: larger main frame matched with smaller‑diameter capstan, for example 1400 mm frame with 1200 mm capstan.
Fastener‑grade wire normally requires annealing after drawing. Most factories already own existing annealing furnaces with fixed inner working dimension.
A smaller finished coil outer diameter from the capstan allows more coils to be loaded inside their existing annealing furnace. This greatly improves furnace utilization rate, cuts per‑ton annealing cost without modifying their current heat‑treatment equipment.
The heavy‑duty large frame keeps sufficient mechanical rigidity and load capacity for thick high‑strength wire drawing, while the smaller capstan produces coil size compatible with customer’s present annealing facility.
We tailor frame‑capstan combinations according to your actual annealing furnace inner size requirements.
Application Range
Suitable material：
‑ Low‑carbon steel wire
‑ Medium‑carbon & high‑carbon steel wire
‑ Spring steel wire, alloy steel, die‑steel wire
‑ Stainless steel wire
Typical end‑products: fastener raw wire, spring wire, heavy construction steel wire.
✅ Best fit: Thick incoming wire, large coil‑weight production scenario.
👉 Not the first choice for ultra‑fine multi‑pass high‑speed drawing (select straight‑line wire drawing machine for such requirements).
Technical Specifications ( LDD-800 type for reference)
| Item | Parameter |
| Inlet Wire Diameter | Φ6.5‑14 mm |
| Finished Outlet Wire Diameter | Φ5.0‑12 mm |
| Drawing Speed | 0‑80 m/min |
| Main Drawing Motor Power | 45 kW (Zhejiang Fangda) |
| Take‑up Trolley Rotation Motor | 4 kW |
| Trolley Traveling Motor | 1.5 kW |
| Capstan Specification | 800 mm, inner wall circulating water cooling |
| Max Coil Weight | Approx. 2400 kg |
| Control System | PLC + Inovance VFD, stepless speed regulation |
| Applicable Raw Material | Low / Medium / High Carbon Steel, Spring Steel, Alloy Steel, Stainless Steel |
| Custom Note | Other wire sizes are available. Motor, PLC and VFD brands can be customized, Siemens, ABB are optional. Please contact us for tailored drawing solution. |
On-Site Installation & Commissioning
Quality Assurance & After‑sales Support
We are original manufacturer for inverted vertical wire drawing machines. Core components including self‑produced reducers and capstans are machined and inspected in‑house.
Key electrical parts adopt well‑proven brands: Zhejiang Fangda motor, Inovance VFD as standard; ABB, Siemens are available upon special request.
Each machine undergoes full‑load running‑in test before packing. We check drawing stability, tension performance, cooling performance and emergency stop function to rule out potential defects prior to shipment.
Warranty Terms
‑ Whole machine: 12‑month warranty.
‑ Motors and VFD (frequency converter): 18‑month warranty.
‑ Covered: Manufacturing defects of core components.
‑ Exclusions: Consumable parts, damage caused by misuse, improper maintenance, unauthorized modification or abnormal working environment.
On‑site labor cost is not included unless stated in written contract.
Our post‑sale commitment
• 24‑hour technical response after receiving your failure report
• Replacement parts will be dispatched within 3‑5 working‑days once defect is confirmed
• Lifelong technical support after warranty expiry; spare parts supplied at cost price
We provide operation manuals, remote troubleshooting guidance, and optional paid on‑site installation & commissioning service.
Frequently Asked Questions
Q1: What is the maximum incoming wire size for this inverted vertical wire drawing machine?
A1: For our reference LDD‑800 model, max incoming wire diameter reaches Φ14 mm. Finished outgoing wire ranges Φ5.0‑12 mm. We can customize capstan and structure according to your actual raw‑wire dimension requirements.
Q2: What brand are the motor, PLC and VFD?
A2: Standard configuration uses Zhejiang Fangda motor and Inovance VFD; PLC supports Siemens / Mitsubishi. ABB / Siemens can be upgraded as your request. Motor power will be customized for your drawing requirement.
Q3: Can it process high‑carbon steel, spring steel and stainless steel wire?
A3: Yes. It is well‑suited for low‑ / medium‑ / high‑carbon steel, spring alloy, die steel and stainless steel wire. A three‑roll electric descaling unit can be installed before die box for non‑pickled wire.
Q4: What optional auxiliary units are available?
A4: Optional accessories include 3‑ton damped pay‑off reel, ZE‑120 wire pointing machine, wire‑accumulating frames.
Q5: Can you send engineers for on‑site installation and commissioning?
A5: Yes. Overseas on‑site installation, commissioning and operator training available on request. Remote guidance is also provided.
Q6: What is your warranty policy?
A6: Whole machine 12‑month warranty. Motors and VFD enjoy 18‑month warranty. Consumables and misuse‑caused damage are excluded.
Secure Export Packaging & Global Shipment
Real photos from our factory showing how our wire drawing machines are carefully packed, loaded, and prepared for global delivery.
Need a Quote for This Inverted Wire Drawing Machine?
Please share your wire material, incoming & finished wire diameter, coil‑weight and annealing furnace dimension (if you need custom frame‑capstan solution). We will prepare tailored solution and detailed quotation for you.
