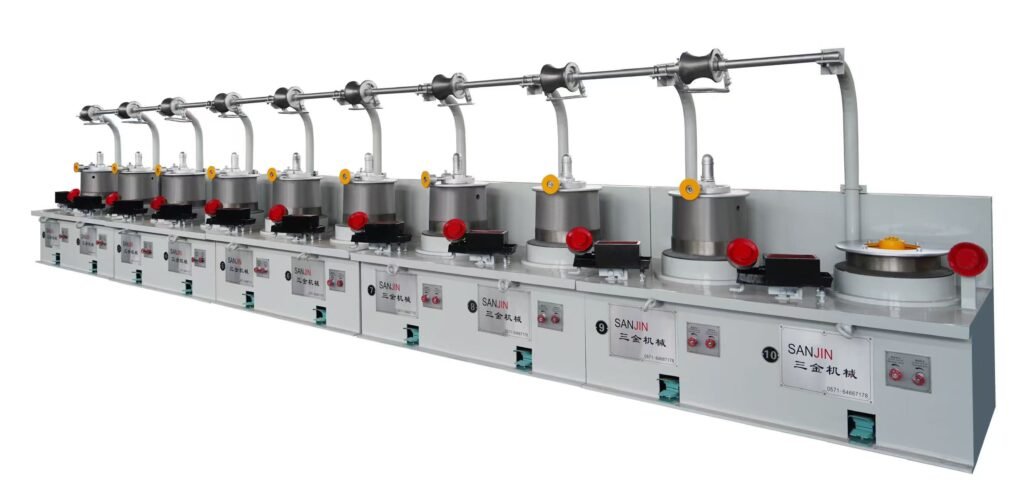

QLD10/450 Copper & Aluminum Wire Drawing Machine
Specialized for drawing 9.5mm aluminum wire rod down to 1.7mm & 8mm copper rod to 2mm finished wire. Features advanced PLC control, water-cooled drums, and high-speed stability at 900 m/min.
| Parameters | Details |
|---|---|
| Model | QLT10-450 |
| Drawing Passes | 10 Passes |
| Inlet Wire Diameter | Φ8.0mm (Copper Rod);Φ9.5mm (Aluminum Rod) |
| Finished Wire Diameter | Φ2.0mm;Φ1.7mm |
| Capstan Diameter | Φ450mm (Vertical type) |
| Max Drawing Speed | 900 m/min (15 m/s) |
| Main Motor Power | 11kW per pass (10 sets) |
| Capstan Cooling | Water cooling (Cold-hardened alloy drums) |
| Control System | PLC & HMI (Inovance brand), PROFIBUS-DP |
| Die Size | Φ40mm × 25 |
| Safety Features | Wire break auto-stop, pneumatic braking, IP54 cabinet |
Key Features
High Efficiency Production
10 drawing passes with a maximum speed of 900 m/min, ensuring rapid output.
Durable Cooling System
Water-cooled, cold-hardened alloy capstans guarantee a long service life and stable drawing temperature.
Intelligent Control
PLC system with a user-friendly interface and automatic wire break detection for seamless operation.
